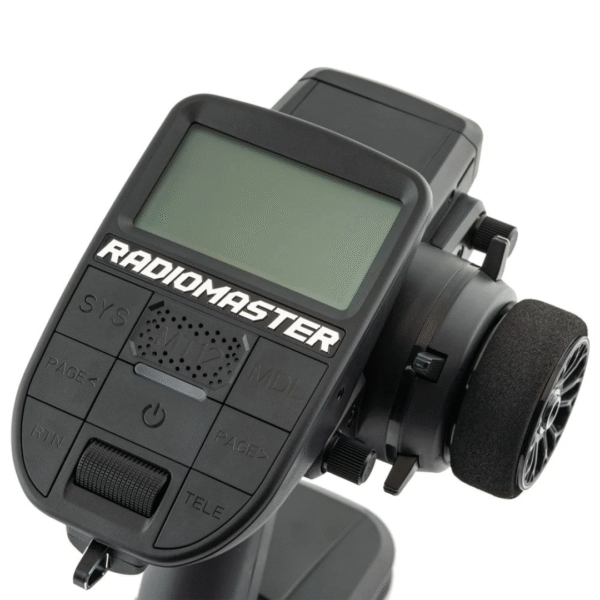

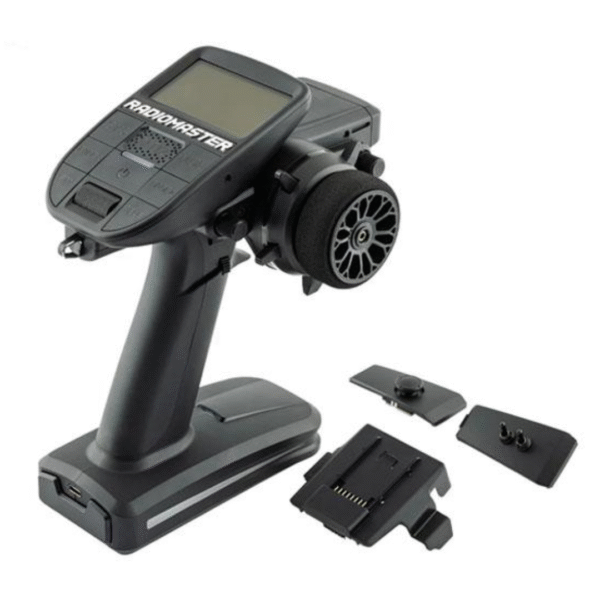

Radiomaster MT12 Surface Radio Controller 2.4G 4in1 Multiprotocol With R85C Receiver

Deskripsi remote MT12: Features • Available with Built-in ExpressLRS Backpack or 4in1 MPM RF modules • Featuring a powerful STM32F407VGT6 with 1MB Flash • Preinstalled EdgeTX firmware • QC3.0 fast charging supporting 2.0A MAX • Compact design with excellent ergonomics • Oversized battery compartment – 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included) • Standard Nano module compartment • RadioMaster standardized button layout • Rotatable antenna • Customizable base switches or 4 way joystick included Specification MT12 • Item: MT12 Surface Radio • Physical dimensions: 177.8*118.4*207.8mm • Weight: 480 grams • Operating frequency: 2.400GHz-2.480GHz • Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz • Supported protocols: Module dependent • Operational current: 160mA for 4in1 / 320mA for ELRS • Operational voltage: DC 6.6-8.4V • Operating system: EdgeTX • Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only) • Display: 128*64 Monochrome LCD • Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included) • Charging: Built in USB-C Charging • Firmware Upgrade method: Via USB or SD card • Wheel and Trigger sensor: Hall-effect • Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module) Deskripsi Receiver: 1. ER3C-i (Included with ExpressLRS version (Receiver bawaan dari varian ELRS)) • Item: ER3C-i 2.4GHz ELRS PWM Receiver • Power supply: DC 4.5 – 8.4V • Antenna type: Built-in high-sensitivity ceramic antenna • Wireless protocol: ExpressLRS 3.3.0 pre-installed • Output channel: 3CH PWM • Telemetry power: 10mW • Battery voltage detection range: DC 4.0 – 35V • Weight: 4.2 grams • Dimensions: 26.1*18.5*13.0 mm • Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER3C-i 2. R85C (Included with 4in1 version (Receiver bawaan dari varian 4in1)) • Item: R85C Receiver • Power supply: DC 4.5 – 8.4V • Frequency range: 2400-2483.5Mhz • Support protocol: D8/D16/SFHSS • Output channel: 5CH PWM • Antenna type: high-sensitivity 2.4G antenna • Telemetry power: 100mw / 20dbm • Weight: 5.7 grams • Dimensions: 31.0*18.5*13.0 mm
