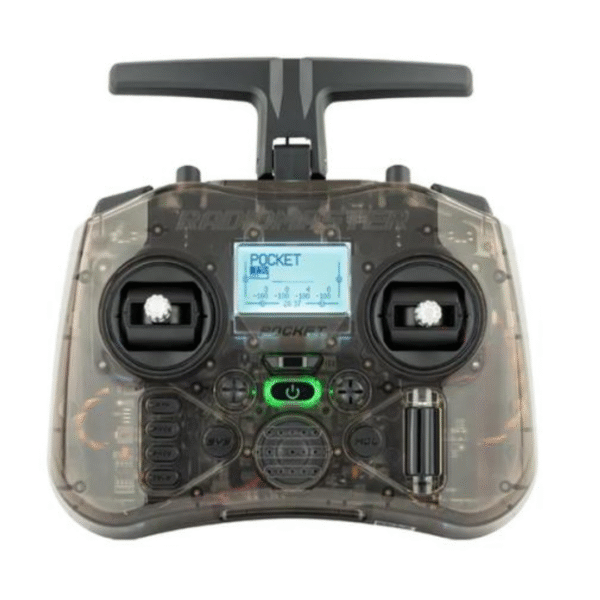

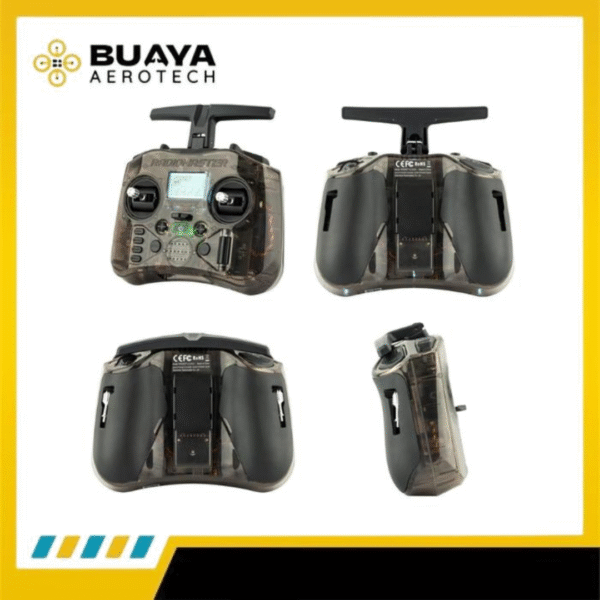

RadioMaster Pocket Hall Gimbals ELRS Transmitter Remote Control

Features • Built-in ExpressLRS Backpack • OLED Display • Rugged CNC Case • Built-in Accelerometer • Packet rates up to F-1000Hz • Wifi and Bluetooth support • High-efficiency cooling system • 5 Direction Nav key and customizable shortcut buttons • Micro and Nano adapters included • Moxon and T-antenna included • CRSF cable for compatible Futaba radios included Specification • Item: Ranger 2.4GHz ELRS Module • Regulatory Domain: ISM2400 • MCU: ESP32(main), ESP8285(aux, as ESP backpack) • RF chip: SX1281IMLTRT • Frequency Range: 2400 MHz – 2480 MHz • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later) • Minimum receiver refresh rate: 25Hz • Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket • Futaba CRSF socket cable: Included • OLED screen: 64x128px • Wifi Support: Yes • Bluetooth support: Yes • 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer) • Built-in RGB light strip • XT30 Power supply voltage: DC 6V – 16.8V • Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna) • Dimension: 95*51*25mm (without antenna) Package Includes • 1 * RANGER Module • 1 * Futaba CRSF socket cable • 1 * JR Adapter • 1 * Nano Adapter • 1 * T Antenna • 1 * Moxon Antenna • 1 * Hexagon socket screwdriver • 3 * M2*5 Screws • 1 * Assembly Manual • 2 * RP1 ExpressLRS 2.4ghz Nano Receiver • 1 * RP2 ExpressLRS 2.4ghz Nano Receiver
